1.7L Supercritical CO2 Extractor

1 LB CO2 Extractor

It’s a 1 LB CO2 extractor and comes with a 2000 mL CO2 extraction vessel (the material basket vessel is 1.7L), which will process about 1 LB per run with 12 runs per day. Therefore, it can also be called a 1.7L supercritical CO2 extractor in BIT company…

1.7L Supercritical CO2 Extractor/ 1 LB CO2 Extractor

Customized for people who study supercritical CO2 extraction process technology to a broader field of analysis and processing. In addition to many industrial uses, it is also suitable for various colleges and universities. At the same time, it can be used in teaching laboratories and precision research.

This CO2 extraction machine can meet the needs of your CO2 extraction process experiment in the laboratory.

It’s a 1 lb CO2 extractor and comes with a 5 L CO2 extraction vessel, which will process about 1 pound per run with 12 runs per day.

The L-02 CO2 Extraction Equipment is one of the most common models in CO2 extraction process laboratories, it means that it can work in the extraction capacity of 1lb of dry material per batch, which is very important for the work of the laboratory because you can use it to carry out small experiments, prove that the extraction data is reliable, and prepare for large-scale commercial or industrial production.

At the same time, we have equipped it with high pressure of 500bar. Of course, you can also order a higher gas pressure to 1050bar to meet a wider range of CO2 extraction process experimental requirements.

8 Advantages of L-02 1 LB CO2 Extractor

  1. High-flow supercritical CO2
  2. Selective extraction, scalable experiment, adjustability, strict quality test
  3. 0.5-2 lbs/h variable frequency adjustable co-solvent adding system
  4. Full-spectrum oil and/or terpene extraction experiment without any solvent
  5. PLC control can be operated without any special skills
  6. The CO2 extraction flowchart panel controls the extraction and separation on and off
  7. The extract tests can be completed within 60 minutes.
  8. Including a one-year warranty and fast parts replacement, priority technical service, and contact with our scientific team.

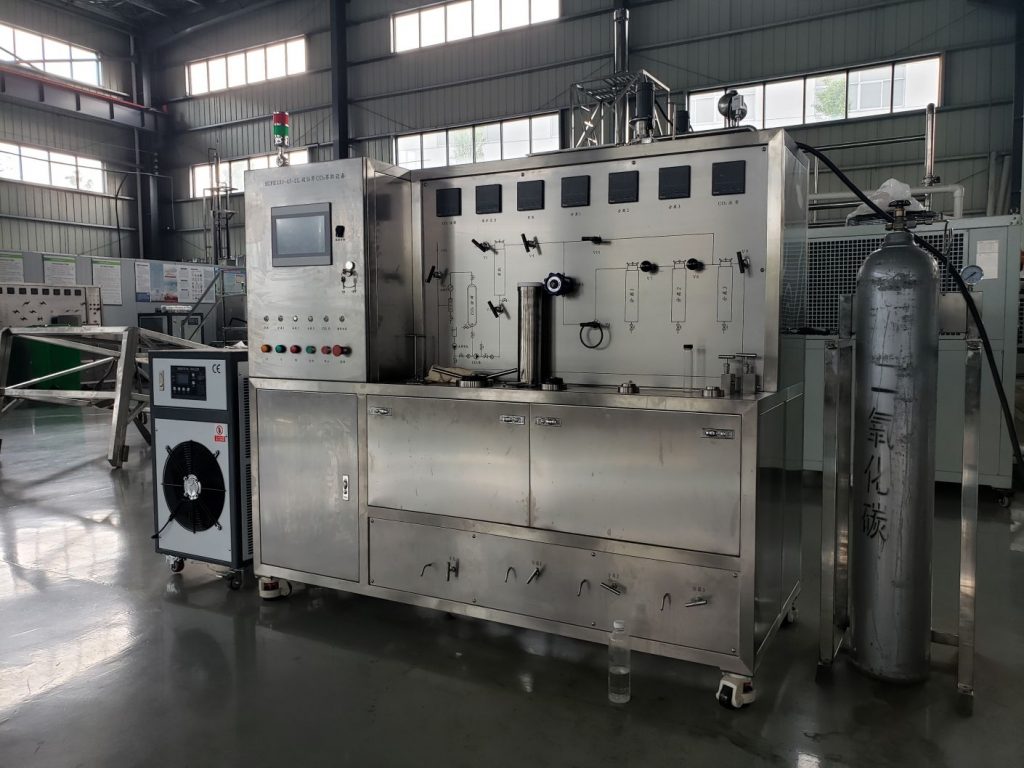

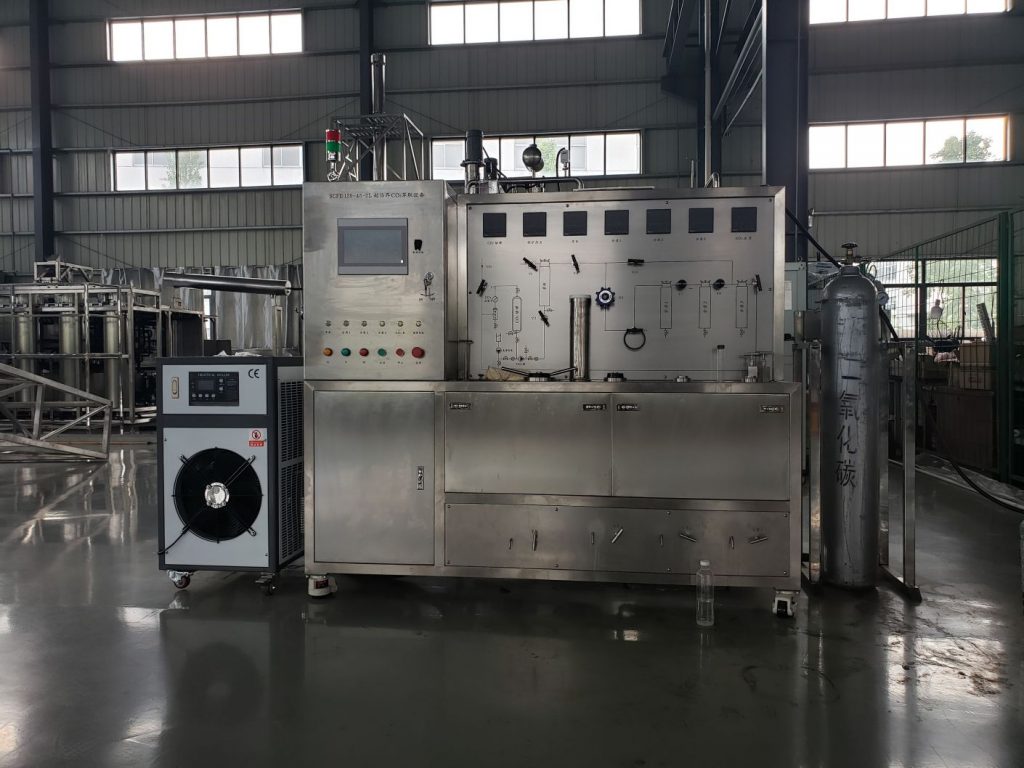

1.7L Supercritical CO2 Extractor
1 LB CO2 Extractor
2L Supercritical CO2 Extraction Machine
1.7L Supercritical CO2 Extractor
co2 essential oil extractor
co2 essential oil extractor

1 LB CO2 Extractor/1.7L Supercritical CO2 Extractor Parameter

CO2 Extraction Vessel CO2 Separation Vessel
Volume2L Material Basket Vessel: 1.7 LVolumeⅠ 1 L, Ⅱ 0.6L
Max Working Pressure500barMax. working pressure Ⅰ Ⅱ 300bar
CO2 Extraction PumpCO-Solvent Pump
Outlet pressure500 barOutlet pressure500 bars
Max. flowrate50L/hMax. flowrate4L/h
CO2 TankParameter Controller/Data Logging
Volume4 LParameters controlPLC / PC-based software with recipe for automation
Working pressure85 bar Screen/Datalogging7 inches/Included
OtherShipping
Power/CO23 phase/Food grade ≥99.5%HS code:8479200000
Installation2600×2000×2000mmAirport /Port of Lading:Shanghai
Optional
Max Working Pressure500-1050barBack pressure valvePneumatic control
Fractionating column300par 4-section gradient temperature control
