Frankincense Oil Extraction Machine

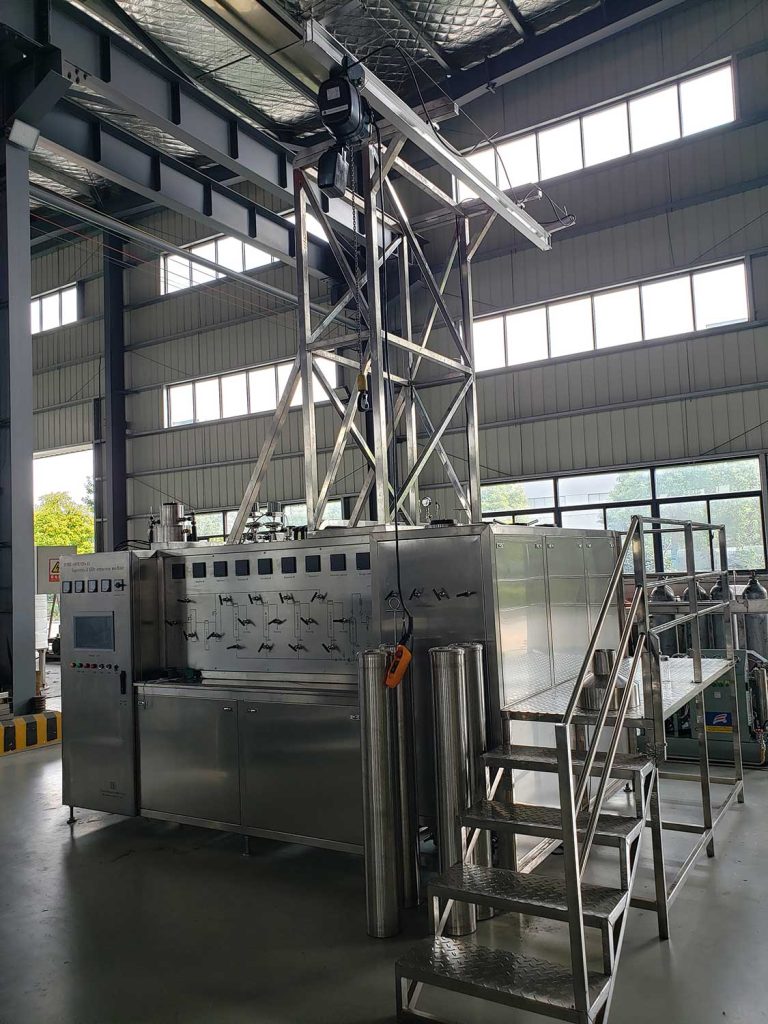

100L supercritical co2 extraction machine

Since 1989. Experts in High Quality & Safe CO2 Extraction Equipment.
2022 Hot Sale 0.1-9000L High-Quality CO2 Frankincense Oil Extraction Machine; Prices and Cost: From $16,500.00/ Set.

100L 25Lx4 CO2 Extraction Machine

Optimization medium-sized CO2 extraction machine, popular in cosmetic factories for extracting valuable and expensive essential oils.

The P-25F CO2 Extraction Machine is designed to work with two pumps, one for CO2 and another one for co-solvent, four extraction vessels, two/three separation vessels, and a separated chiller and heater. It can reach max pressure (Pmax) of 370 (or optional up to 800 bar) bar and max temperature (Tmax) of 85 °C.
The P-25F CO2 Extraction Machine has four extraction kettles with a capacity of 25L and a total capacity of 100L. Equipped with a CO2 recovery system to help recover CO2 after each batch of material extraction, save gas and reduce usage costs.

Carbon dioxide is continually recycled with a close circuit for fluid recirculation. It’s fully automated and the co2 extraction process is controlled by the PLC. Automation not only controls pressure and temperature but operates the full extraction process.


  • Extraction of bioactive molecules from medicinal plants, alkaloid extraction, and separation;
  • Lipid lipids from different microorganisms, either for lipid recovery or removal of lipid lipids from glycosides and proteins;
  • Anticancer substances are extracted from various plants, especially paclitaxel is obtained from the bark and leaves of Taxus Chinensis to prevent cancer;
  • Vitamins, mainly the extraction of vitamin E;
  • Purification of various active substances (natural or synthetic) to remove unwanted molecules (such as pesticides from vegetable extracts) or “slag” to obtain purified products;
  • Processing of various natural antibacterial or antioxidant extracts, such as basil, red string, thyme, garlic, onion, chamomile, paprika, licorice and fennel seeds.

Features of 100L CO2 Extractor

  • Modular design;
  • Configure multiple security measures in parallel
  • Simple operation and convenient maintenance;
  • Small footprint;
  • Customized;
  • Targeted design, closely matching CO2 extraction process requirements;
  • low failure rate;
  • The raw materials are applicable to a wide range.
Volume25 L, 4 setsVolumeⅠ 20 L, Ⅱ 10 L
Max Working Pressure400barMax. working pressure Ⅰ Ⅱ 180bar
Outlet pressure400 barOutlet pressure400 bars
Max. flowrate800L/hMax. flowrate20L/h
Volume20 LParameters controlPLC / PC-based software with recipe for automation
Working pressure80 bar Screen/Datalogging15 inches/Included
Power/CO23 phase/Food grade ≥99.5%HS code:8479200000
Installation5500×3500×4500mmAirport /Port of Lading:Shanghai
Max Working Pressure500-1050barBack pressure valvePneumatic control
Fractionating column300par 4-section gradient temperature control
Parameter of 120l supercritical co2 extraction machine

Advantages of BIT’s CO2 Extraction Machines

The use of a quick-opening extraction structure improves production efficiency and product quality, and completely solves the key problems in industrial scale-up of this technical equipment;
For solid substances, a structure with a small aspect ratio is designed, which reduces the loss of extraction pressure, optimizes the operation process, and solves the long-term unsolved problems in this technology. For liquid substances, a tower structure with a large length-diameter ratio that can be rectified and separated is designed, and the materials can be separated more finely;
The high-efficiency tower-type analytical separation device is adopted to improve the separation efficiency of the equipment;
The unique and reliable sealing structure reduces the loss of CO2 operation and reduces the product cost;
The extraction process is optimized, which can adapt to the long-term stable operation of the equipment under high pressure;
A suitable temperature control method is developed to meet the requirements of different material separation characteristics.

Simply the most complete
CO2 extraction process you can find

CO2 Extraction Process

From raw material preparation, we offer you the most complete CO2 essential oil extraction process.
At the same time, more than 100 CO2 essential oil extraction methods from the laboratory are also provided for you.


how to extract essential oils

Detailed explanation of CO2 extraction process steps of plant essential oils。

Read More

how to extract cbd

About the co2 extraction machine cannabis.
You can read a lot of articles about cbd oil extraction from the Internet, but I can tell you for sure that they are not comprehensive at all, and even have wrong descriptions.

Let’s start reading

Frankincense CO2 Oil

Frankincense CO2 oil in perfume formulas is an outstanding fixative and for providing good tenacity.

The CO2 extraction process captures a broader spectrum of the classic aromatic profile and offers greater stability to the oil compared to steam distilled Frankincense oil. Frankincense CO2 should age to perfection with its clear, rich, smooth, and outstanding aroma!

frankincense oil extraction machine
Frankincense Oil Extraction Machine

CO2 Extraction Process

  • Pulverization degree:20 mesh
  • Extraction pressure: 30 MPa
  • Extraction temperature: 55°C
  • Separation pressure I: 8 MPa
  • Separation I temperature: 50°C
  • Separation pressure II: 5 MPa
  • Separation II temperature: 45°C
  • Extraction time: 90 min
frankincense co2 extract
frankincense co2 extract

Frankincense oil extraction method

Frozen frankincense, crushed (20 mesh), weighed a certain amount into the 1 L extraction kettle, heated the extraction kettle and the analysis kettle to reach a predetermined temperature, fed CO 2 gas at a certain flow rate, adjusted the pressure of each kettle, and then started cyclic extraction.

The pressure of separation vessel I is (8.0 ± 0.5) MPa and the temperature is 50 ℃; the pressure of desorption vessel II is (5.0 ± 0.5) MPa and the temperature is 45 ℃. This condition remains unchanged in each experiment.

The experiment was carried out according to the orthogonal design, and the extraction rate of frankincense oil was used as the evaluation index, the influence of the level of various factors on the extraction effect was investigated, and the optimal process conditions were obtained.

Frankincense Oil Extraction Machine
Frankincense Oil Extraction Machine

Frankincense oil extraction machine & Frankincense oil extraction plant cost

Our frankincense oil extraction equipment price & frankincense oil extraction machine price is lower than our peers’, and our extraction equipment is high quality, we have our own manufacturing factory, all products are factory price, there is absolutely no middleman markup, we accept both small batch scale customer and large industrial batch scale wholesale customer, CO2 extraction machines and frankincense oil extraction machines for sale online.


CO2 Extraction Machine Buyer’s Guide

As you can imagine, not all supercritical CO2 extractors are made the same.
For more than 30 years, we have customized many CO2 extraction machines (Tabletop CO2 Extractor) for many companies and university laboratories (1 lb CO2 extractor). Because each customer’s CO2 extraction process requirements are different, there are almost no identical machines.

How many liters of CO2 extraction vessels are needed?

The first factor that determines the size of the CO2 extraction vessel is the daily working hours of the plant, which determines the daily extraction batch. The vessel size of the CO2 extractor depends on the biomass to be processed per day.

Read More

How many separators are needed?

How can I custom my separator when I need more terpenes in my How can I custom my separators when need more terpenes in CBD oil extraction process?
Waxes separation and Light oil separation in 1st separator;
Light oil separation in 2nd separator;
To trap lightest and volatile compounds in 3rd separator.
It is important to choose the right vessel size that will meet your current needs as well as future demand.

Read More

How many pressure is optimization for your CO2 extraction process requirements?

The choice of CO2 extraction pressure is a changing factor. If the extraction pressure is too high, the useless substances in the plant will be extracted, such as wax and chlorophyll. If the extraction pressure is too low, the extraction time will be increased.

Read More

How can the minimum operating costs be achieved?

Read More
