co2 cannabis extraction machine

CO2 cbd extraction equipment

Experts in High Quality & Safe CBD CO2 Extraction. 2022 Hot Sale 1-3000 LB Cannabis Extraction Equipment; Prices and Cost: From $24,500.00/ Set. 1.0 Setss(Min. Order);
High-terpene Full-spectrum, Designed For Low Temp, Delicate Extraction.
CO2 Machines for Extracting CBD

Click now to get everything

About co2 cannabis extraction machine

With the successful 300L C-50S co2 cannabis extraction machine of BIT selling well all over the world, we realized that we could do better, so we set out to design the system to meet the needs of commercial-scale manufacturers and launched the C-150D supercritical CO2 fluid extraction equipment. The commercial-grade supercritical CO2 extraction system is automated and can be operated without any special skills.

Video of 300L CO2 cbd extraction machine

C-150D has dual 150-liter extractors for processing plant matter. The flow rate is 15.7 KG/Min, and it has a hydraulically driven extractor cover, which can easily load and unload the prepared plant material for you. It can process 720-1000 pounds of dry plant material per day. The C-150D supercritical CO2 cbd extraction machine is optimized for Cannabis/hemp extraction. If you customize the HUAN BIT supercritical fractionation column, you can use the SFF technology provided by us to separate more wax during the extraction process without too much More post-processing.

300L Supercritical CO2 Extraction Equipment
300l supercritical CO2 cbd extraction equipment
cbd oil extraction machine
300L Supercritical CO2 Fluid Extraction Machine

C-150D CO2 cbd oil extraction machine can also carry out subcritical treatment (low pressure/low temperature), so using this system, you will get the optimization of both worlds!

The C-150D supercritical CO2 extraction machine is used to extract different molecules from plants using CO2 fluid. The use of CO2 means that there is no longer a need to worry about typical solvents that may harm the use but also affect the chemical composition of the extracted oil, thus creating a high-performance extraction system for many applications.

In our commercial-grade supercritical co2 cbd extraction equipment, the plant material is decomposed at the molecular level through the container of plant material that allows supercritical CO2 to pass through. When CO2 passes through plant materials, it will deprive you of the plant components of the required extract and provide you with ready-made pure vegetable oils (terpenes, full spectrum, etc.).

BIT provides a complete engineering and design process. This includes on-site engineering reviews, detailed design and drawing packages, and project management plans. After installation, we will provide you with complete training and method development.

300L Supercritical CO2 Extraction System
cbd extraction machine

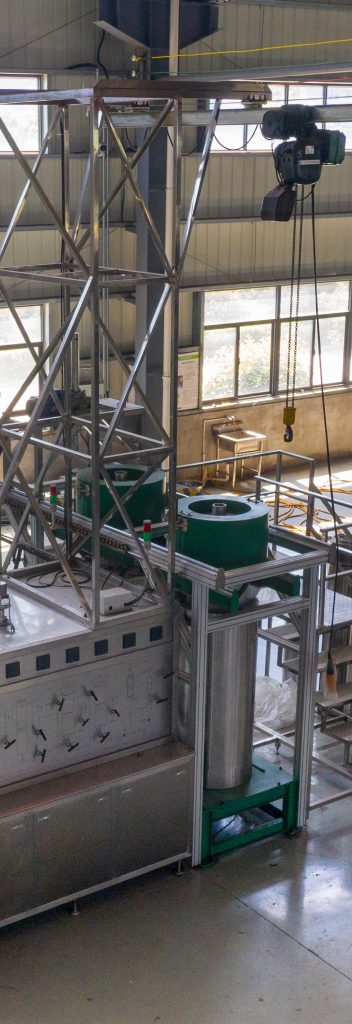

5 advantages of CO2 extraction of essential oils
300l CO2 hemp extraction equipment

300L co2 hemp extraction equipment features

  • High flow rate, CO2 fluid flow rate up to 15.7kg per minute.
  • Single container capacity: 150L, number of containers: 2
  • The extraction time is short, processing 720-1000 pounds per day.
  • The design of two extraction vessels means that there is no downtime between operations.
  • The carbon dioxide recovery system has low operating costs.
  • Three separators can easily separate light and heavy components.
  • Low maintenance cost, piston seal can be replaced quickly
  • Extraction, 5G information channel, remote work, compatible with mobile interface
  • Graphic control panel, facing the future, networked production, remote control,
  • Run log record export to optimize production process
  • Database interface, production process customization
  • Friendly man-machine interface, simple operation and setting.
  • ISO9001, ASME, CE certification, in line with AMP, HACCP standards
Volume150 L, 2 setsVolumeⅠ 27 L, ⅡⅢ 17L
Max Working Pressure450barMax. working pressure Ⅰ 200bar, ⅡⅢ 180bar
Outlet pressure450 barOutlet pressure450 bars
Max. flowrate1000L/hMax. flowrate50L/h
Volume103 LParameters controlPLC / PC-based software with recipe for automation
Working pressure85 bar Screen/Datalogging7 inches/Included
Power/CO23 phase/Food grade ≥99.5%HS code8479200000
Installation6000×4800×6000mmAirport /Port of LadingShanghai
Max Working Pressure500-700barFractionating column300par 4-section gradient temperature control
configuration OF 300L CO2 cbd extraction equipment

Cannabis oil Supercritical CO2 extraction machine

CBD Oil CO2 Extraction Process
CBD Oil CO2 Extraction Process Diagram

Read more:Read how to extract cannabidiol (CBD)

Current extraction methods commonly used in CBD include organic solvent extraction and supercritical carbon dioxide extraction.

In addition, there are individual companies that use subcritical water extraction. Most domestic companies use organic solvent extraction.

Cannabis/hemp is a cannabis plant in the Moraceae family. It is an annual erect herb with a height of 1 to 3 meters. The branches have longitudinal grooves and densely grown gray-white appressed hairs. The leaves are palmately divided, and the lobes are lanceolate or linear-lanceolate, especially the dried flowers and trichomes of female plants.

The tetrahydrocannabinol (THC for short) in cannabis is an addictive drug component. THC has mental and physical activity after inhalation or oral administration. Humans have a history of smoking marijuana for more than a thousand years, and the use of drugs and religion in the 20th century tends to increase

Cannabis refers to marijuana with tetrahydrocannabinol (THC) <0.3%, without drug use value, but with medical and other commercial value.

The flowers and leaves of cannabis/hemp/hash contain an important active ingredient cannabidiol (CBD), which is a non-addictive ingredient in cannabis. The latest research progress shows that CBD has good biological activity and can be used to treat Alzheimer’s Murder disease (Alzheimer’s disease), anti-spasm, anti-anxiety, anti-tumor, psychosis, Parkinson’s disease and other serious diseases.


CO2 Extraction Machine Buyer’s Guide

As you can imagine, not all supercritical CO2 extractors are made the same.
For more than 30 years, we have customized many CO2 extraction machines (Tabletop CO2 Extractor) for many companies and university laboratories (1 lb CO2 extractor). Because each customer’s CO2 extraction process requirements are different, there are almost no identical machines.

How many liters of CO2 extraction vessels are needed?

The first factor that determines the size of the CO2 extraction vessel is the daily working hours of the plant, which determines the daily extraction batch. The vessel size of the CO2 extractor depends on the biomass to be processed per day.

Read More

How many separators are needed?

How can I custom my separator when I need more terpenes in my How can I custom my separators when need more terpenes in CBD oil extraction process?
Waxes separation and Light oil separation in 1st separator;
Light oil separation in 2nd separator;
To trap lightest and volatile compounds in 3rd separator.
It is important to choose the right vessel size that will meet your current needs as well as future demand.

Read More

How many pressure is optimization for your CO2 extraction process requirements?

The choice of CO2 extraction pressure is a changing factor. If the extraction pressure is too high, the useless substances in the plant will be extracted, such as wax and chlorophyll. If the extraction pressure is too low, the extraction time will be increased.

Read More

How can the minimum operating costs be achieved?

Read More

Further Reading: CBD Oil CO2 Extraction Machine

 Carbon dioxide (CO2) extraction is commonly used in the manufacture of various foods and other products, and is becoming more and more popular for extracting high-quality hemp oil rich in cannabidiol (CBD).

Currently, Cannabis/hemp can be extracted in many ways, and ethanol extraction is the most common method. Supercritical carbon dioxide extraction (SCFE) is to contact the supercritical carbon dioxide with the substance to be separated under the supercritical state, so that it can selectively extract the components with different polarity, boiling point and molecular weight in sequence. This sustainable green technology can be used to extract high-purity oils containing high aromatic compounds.

Read More

Here we have compiled some articles about Supercritical Fluid (SCF) in the station, hope they can help you.

It has the characteristics of simple operation process, short extraction time, low extraction temperature, high extraction efficiency, and no solvent residue pollution. At present, this technology is used in many research fields, especially in the extraction of plant essential oils, such as the extraction of agarwood, capsaicin, turmeric, CBD, and other essential oils or pigments, as well as the extraction of many other plant essential oils. Applied to this technology, the above fully demonstrates that SCFE technology has advantages in essential oil extraction.


Cannabis/hemp flowers and leaves are picked at the mature stage, dried, crushed and sieved.

hemp oil supercritical CO2 extraction machine
120l co2 cbd extraction equipment
cbd extraction equipment for sale
cbd extraction equipment for sale

Hemp Oil CO2 Extraction Process

Drying → crushing → passing through a 30-mesh sieve → entering the extraction kettle → increasing pressure and heating → low pressure separation → Cannabis/hemp essential oil

  • The extraction kettle is filled with crushed Cannabis/hemp material
  • The CO2 high-pressure pump presses the pressurized carbon dioxide gas (SC-CO2) at the optimal temperature into the extraction kettle.
  • Supercritical carbon dioxide interacts with cannabis to dissolve the cannabinoid compounds contained in it.
  • Supercritical CO2 transports hemp oil particles to the separator through a pressure release valve.
Supercritical CO2 extraction process for CBD
Supercritical CO2 extraction process for CBD
  • In the separator, the pressure is lower and the carbon dioxide is separated from the hemp oil.
  • The carbon dioxide rises and is sent back to the carbon dioxide tank for reuse.
  • Cannabis oil, wax and resin fall in the separator and are then captured by the collection container.
  • The resulting material is further processed into various products, such as CBD-rich “hemp oil” without any solvent.

The cannabis extraction test process carried out in the HUAN BIT laboratory obtained the following results:

Effect of extraction pressure on extraction rate

When the fixed extraction temperature is 50 ℃, the extraction time is 2 h, and the CO2 flow rate is ** ML/L/Min, the effects of extraction pressures of 150, 200, 250, 300, and 350 par on the extraction rate of essential oils are investigated respectively. The process extracts Cannabis/hemp essential oil and calculates the extraction rate.

The extraction pressure changes the density of supercritical CO2, thereby affecting the extraction rate of essential oils. Increasing the extraction pressure will increase the extraction rate of essential oils. When the pressure is 300 par, the extraction rate reaches a maximum of 0.271%, but the pressure continues to rise to At 350 par, the extraction rate drops to 0.261% instead. Therefore, 300 par is the optimal extraction pressure.

Supercritical CO2 Extraction of Cannabis Oil
Supercritical CO2 Extraction of Cannabis Oil
cbd oil supercritical CO2 extraction machine
cannabis extraction equipment for sale

Effect of extraction temperature on extraction rate

When the fixed extraction pressure is 250 par, the extraction time is 2 h, and the CO2 flow rate is ** ML/L/Min, investigate the effects of extraction temperatures of 40, 45, 50, 55, and 60 ℃ on the extraction rate of essential oils. The process extracts Cannabis/hemp essential oil and calculates the extraction rate.

Increasing the temperature can accelerate the thermal movement of molecules, which in turn increases the diffusion rate of the solute. With the increase of extraction temperature, the extraction rate of essential oils increases, and the extraction rate is 0.266% at 50 ℃, which reaches the maximum. When the extraction temperature continues to increase, the extraction rate of essential oils decreases. Therefore, 50 ℃ is the optimal extraction temperature.

Effect of extraction time on extraction rate

When the fixed extraction pressure is 250 par, the extraction temperature is 50 ℃, and the CO2 flow rate is ** ML/L/Min, investigate the effect of extraction time on the extraction rate of essential oils at 1, 1.5, 2, 3, and 3.5 h. The process extracts Cannabis/hemp essential oil and calculates the extraction rate.

When the extraction time was 1 to 3.5 h, the extraction rate of Cannabis/hemp leaf essential oil increased with the increase of the extraction time, and the maximum extraction rate was 0.272% at 2 h. When the extraction time continues to become longer, the extraction rate decreases instead. It may be that the long extraction time causes other pigments and components in the system to be extracted. Therefore, the extraction time is preferably 2h.

cannabis oil supercritical CO2 extraction machine
co2 cbd extraction equipment
cannabis oil supercritical CO2 extraction machine
cannabis oil making machine

The influence of CO2 fluid flow rate on extraction rate

When the fixed extraction pressure is 250 par, the extraction temperature is 50 ℃, and the extraction time is 2 h, the CO2 fluid flow rate is **, **, **, **, ** ML/L/Min. Influence, extract Cannabis/hemp essential oil according to the extraction process, and calculate the extraction rate.

With the increase of CO2 fluid flow rate, the extraction rate of Cannabis/hemp leaf essential oil also increases. When the CO2 fluid flow rate is ** ML/L/Min, the extraction rate of essential oil reaches the maximum, which is 0.266%. When it continues to increase, The extraction rate decreased slightly. It is speculated that appropriately increasing the CO2 fluid flow rate is beneficial to the extraction of essential oils, but if the flow rate is too large, the contact time between the CO2 fluid and the hemp leaf powder will be reduced, which is not good for the extraction of essential oils. Therefore, the CO2 flow rate is ** ML/L/Min.

CO2 extraction process for cbd oil

The single factor experiment and response surface method were used to optimize the extraction process of hemp leaf essential oil. The results of variance analysis showed that in terms of factors affecting the extraction rate of Cannabis/hemp leaf essential oil, extraction time>CO2 fluid flow>extraction pressure>extraction temperature.

Combined with the actual operability and convenience of the extraction process, finally the process conditions were changed to extraction pressure 290 par, extraction temperature 49 ℃, extraction time 2h, CO2 flow rate ** ML/L/Min, and the actual extraction rate obtained was 0.283 %, which is close to the theoretical value of 0.281%, and the actual deviation between the predicted value and the true value is −0.71%. The two have a good fit, indicating that the optimized extraction process parameters based on the response surface method are accurate and reliable, and have practical value.

cannabis oil supercritical CO2 extraction machine
cannabis oil extractor machine

CBD extraction machine cost and CBD oil extraction machine price

Our cannabis oil extraction machine price is lower than our peers’, and our extraction equipment is high quality, we have our own manufacturing factory, all products are factory price, there is absolutely no middleman markup, we accept both small-batch scale customer and large industrial batch scale wholesale customer, co2 cannabis extraction machine and co2 CBD extraction equipment for sale online.

How many a CBD extraction machine cost?

Costs for CO2 and ethanol extraction processes vary depending on the type of automation and how large the scale of operation is. Each CBD extraction method requires a different amount of space to house the extraction equipment.
Both CO2 and ethanol extractions from cannabis create changes throughout different phases that use temperature and pressure. There are a number of factors that contribute to the overall costs of a CBD extraction machine.

The truth is a CBD extraction machine can range anywhere from a few thousand dollars to half a million dollars or more depending on the technology itself. A smaller extraction system for R&D purposes can be considered a “desktop co2 extractor” extractor and can use a number of solvents in order to extract CBD. This can be hydrocarbon, ethanol, or CO2.

For any size extractor, hydrocarbon and ethanol extraction equipment are generally much less expensive than supercritical CO2 extraction equipment. This is because CO2 equipment is highly specialized to handle the operating pressures necessary for CO2 to reach the supercritical state which makes it efficient for extraction.

Of course, the size of an extractor no matter the extraction method used is directly proportional to the cost of the machine. While some extractors are designed to process 10 to 80 pounds per day and can cost tens of thousands of dollars, other extractors can be designed for industrial levels of hemp processing that can cost hundreds of thousands.

Simply the most complete
CO2 extraction process you can find

CO2 Extraction Process

From raw material preparation, we offer you the most complete CO2 essential oil extraction process.
At the same time, more than 100 CO2 essential oil extraction methods from the laboratory are also provided for you.


how to extract essential oils

Detailed explanation of CO2 extraction process steps of plant essential oils。

Read More

how to extract cbd

About the co2 extraction machine cannabis.
You can read a lot of articles about cbd oil extraction from the Internet, but I can tell you for sure that they are not comprehensive at all, and even have wrong descriptions.

Let’s start reading
