CO2 garlic oil extraction machine

C-250FF 1000L Supercritical CO2 Extraction Machine

CO2 garlic oil extraction machine, simple operation and fast extraction.
As we found out, CO2, being a solvent with the best safety profile, reigns on top of medicinal plant extracts, the supercritical CO2 extraction machine can extract the purest carbon dioxide extract from garlic.

1000L supercritical CO2 extractor

In China, our competitor is ourselves; when the P-25F and P-30F supercritical CO2 extraction machine were born and were recognized by the market, we set out to design a dual extractor combination system to meet the requirements of more flexibility and greater production;

P-250FF is a powerful supercritical CO2 extraction machine with four 250L extractors for processing plant matter.
The P-250FF has a load capacity of 200 LBS, a flow rate of 24.3KG/Min, and a hydraulically driven housing, which can easily carry out the biomass loading and unloading process for you.

supercritical co2 extraction system
1000L supercritical co2 extraction machine
supercritical co2 extractor
1000l supercritical co2 extractor
Supercritical CO2 Fractionation
Supercritical CO2 Fractionation

C-250FF is equipped with supercritical CO2 fractionation, combined with BIT’s unique SFF technology, which can perfectly countercurrently extract garlic oil and hemp/hash oil.

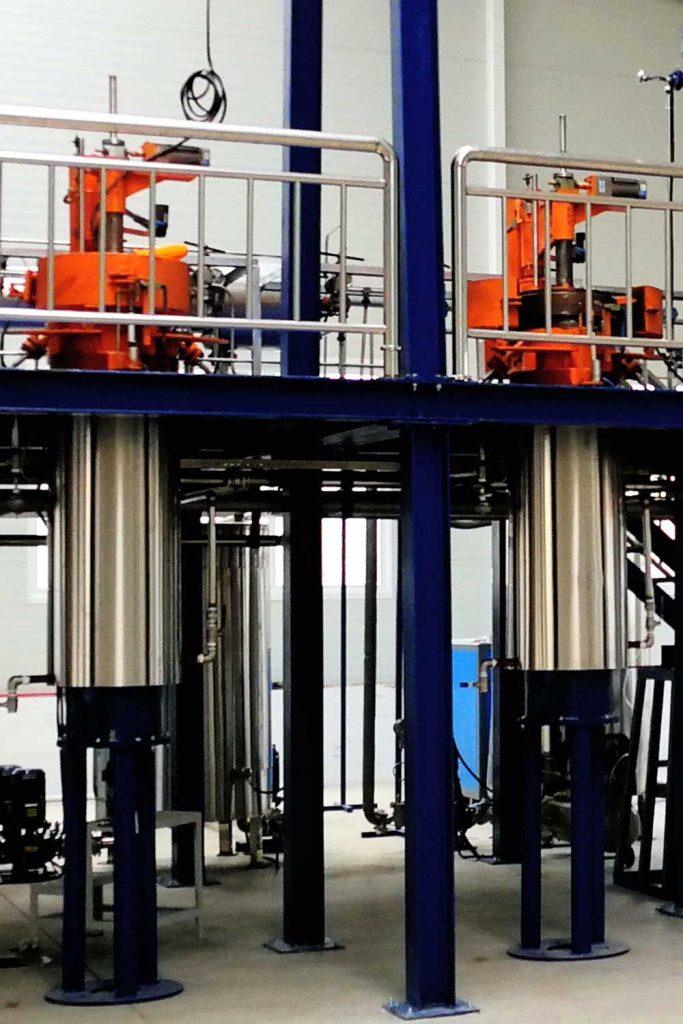

In fact, the equipment in the picture is customized by us for a company in Thailand. They have successively ordered four sets of supercritical extraction equipment and a 250L supercritical fractionation system in Huan for the extraction of full-spectrum cannabis/hash oil; BIT Provided them with SFF technical support.

  • Two sets of extraction container systems, each set of containers consists of two 250L containers, which can hold 300-500 pounds of biomass at the same time.
  • High CO2 flow represents efficient extraction, and the material in each set of 250L containers can be processed in about two hours.
  • The extraction time is short, processing 2400-3000 pounds per day.
  • Automatic opening and closing design of hydraulic belt of extraction vessel, easy loading and unloading of biomass
  • Integrated four-stage gradient temperature control supercritical fractionation system
  • Two 100L cyclones
  • 100L/H Co-solvent adding system
  • Fully automatic valves and regulators for flow and pressure control
  • Independent control panel with remote monitoring function
  • i-Extraction, 5G information channel, remote work, compatible with mobile interface
  • Graphic control panel, facing the future, networked production, remote control,
  • Run log record export to optimize production process
  • Database interface, production process customization
  • Friendly man-machine interface, simple operation and setting.
  • Factory assistance, warranty, complete training and on-site support
supercritical co2 extraction machine
1000l supercritical co2 extraction machine
garlic oil supercritical co₂ extraction machine
garlic oil supercritical CO2 extraction machine

The advantages of CO2 extracted garlic oil

Carbon dioxide (CO2) is a naturally occurring gas in the earth’s atmosphere. If we put CO2 in a supercritical state, carbon dioxide shows to be the perfect solvent for the production of medicinal plant extracts.

Garlic oils extracted with a BIT CO2 extraction machine display characteristics of essential oils while avoiding harmful solvent residues that often carry into absolutes.

The beauty of CO2 extraction is that, once the oil is extracted from the garlic, the CO2 is simply evaporated by lowering its pressure so it returns to a gaseous state, and the gas then quickly, safely, and completely dissipates. ​The procedure is fast, gentle and completely enclosed to prevent the presence of oxygen, thus preserving the composition of the chemical constituents.

EXTRACTORSEPARATOR
Volume250 L, 4 setsVolumeⅠ 100 L, Ⅱ 100L
Max Working Pressure350barMax. working pressure Ⅰ 160bar, Ⅱ 160bar
CO2 HIGH PRESSURE PUMPCO-SOLVENT PUMP
Outlet pressure350 barOutlet pressure350 bars
Max. flowrate1500L/hTank/Max. flowrate200L / 100L/h
CO2  OUTSIDE TANK/PUMP(SUPPLIED BY BUYER)PARAMETERS CONTROLLER
Volume/Pump1500L / 1500L/hParameters controlPC-based software with recipe for automation
Working pressure85 bar / 100bar DataloggingIncluded
FRACTIONATING (SFF) COLUMNTAIL GAS BUTTER TANK
SizeΦ152×16×5200mmVolume500L
Working pressure260barWorking pressure50 bar

HOW TO CHOOSE THE RIGHT CO2 EXTRACTOR?

CO2 Extraction Machine Buyer’s Guide

As you can imagine, not all supercritical CO2 extractors are made the same.
For more than 30 years, we have customized many CO2 extraction machines (Tabletop CO2 Extractor) for many companies and university laboratories (1 lb CO2 extractor). Because each customer’s CO2 extraction process requirements are different, there are almost no identical machines.

How many liters of CO2 extraction vessels are needed?

The first factor that determines the size of the CO2 extraction vessel is the daily working hours of the plant, which determines the daily extraction batch. The vessel size of the CO2 extractor depends on the biomass to be processed per day.

Read More

How many separators are needed?

How can I custom my separator when I need more terpenes in my How can I custom my separators when need more terpenes in CBD oil extraction process?
Waxes separation and Light oil separation in 1st separator;
Light oil separation in 2nd separator;
To trap lightest and volatile compounds in 3rd separator.
It is important to choose the right vessel size that will meet your current needs as well as future demand.

Read More

How many pressure is best for your CO2 extraction process requirements?

The choice of CO2 extraction pressure is a changing factor. If the extraction pressure is too high, the useless substances in the plant will be extracted, such as wax and chlorophyll. If the extraction pressure is too low, the extraction time will be increased.

Read More

How can the minimum operating costs be achieved?

Read More

Further Reading: CBD Oil CO2 Extraction Machine

Garlic Oil CO2 Extraction Machine

garlic

Garlic oil is a special substance in garlic, showing a bright and transparent amber liquid. It is the most important substance extracted from garlic. This essential oil contains very important active sulfides. It is very useful for general health and cardiovascular health. help.

Garlic oil appearance

Garlic oil is a light yellow liquid with a strong garlic smell. It is insoluble in water and partially soluble in ethanol. Although the main components of garlic oil are sulfide compounds, the chemical properties are relatively stable and can withstand 120°C in a non-strong acid environment. The above high temperature is not easy to decompose, but if exposed to ultraviolet light for a long time, it can induce decomposition.

The main components are allyl propyl disulfide, diallyl disulfide, diallyl trisulfide, allicin, etc. It is mainly used to prepare spicy seasonings and also used in medicines such as disinfectants.

Active ingredients: Propylene disulfide, dipropylene disulfide, dipropylene trisulfide, dipropylene sulfide, propylene methyl sulfide and other volatile sulfur compounds

supercritical co2 extract garlic oil

Application of garlic oil

Garlic oil is a broad-spectrum antibacterial substance, which has various pharmacological functions such as activating cells, promoting energy production, increasing antibacterial and antiviral capabilities, accelerating metabolism, and relieving fatigue.
Therefore, it has a wide range of applications in many fields.

In terms of medical treatment, allicin can be used to treat infectious diseases, digestive system diseases, oral diseases, cardiovascular and cerebrovascular diseases, etc., and has anti-aging, anti-metal poisoning, anti-cancer and anti-cancer effects. In terms of breeding, allicin has obvious feeding attraction to animals, and has sterilization and anti-oxidation effects in the body, and can enhance the immune function of animals.

Adding allicin to various animal feeds can increase animal feed intake and feed conversion rate, increase animal survival rate, reduce morbidity, and improve the meat quality of animal products. It is a feed additive with great application value.
In terms of planting, allicin can be used to control crop pests and nematodes.

Some companies are optimistic about the development prospects of allicin. In order to facilitate the use and increase the curative effect, they have developed allicin, allicin injection, allicin capsules, allicin effervescent tablets, garlic oil microcapsules, garlic air vapor spray, garlic tincture , Garlic liquid, garlic syrup, garlic slices, garlic enema, garlic injection, etc.

co2 extractor
1000l supercritical co2 extraction machine
  1. Broad-spectrum antibacterial, strong antibacterial power
  2. Seasoning to attract food to improve feed quality
  3. Enhance immune function, health care and promote growth
  4. Improve animal quality
  5. Reduce poison and repel insects, prevent mildew and keep fresh
  6. Non-toxic, no side effects, no drug residues, no drug resistance.
  7. Anti-coccidial effect.
  8. One of the raw materials of TNT explosive
co2 extraction machine
1000l supercritical co2 extraction machine
  1. A natural tonic agent for the circulatory system in the body-lowering cholesterol and blood lipids, enhancing blood vessel elasticity, reducing platelet aggregation and promoting blood circulation, and can prevent cardiovascular diseases such as thrombosis and hypertension.
  2. Prevent colds, and apply to cold symptoms such as fever, pain relief, cough, sore throat and nasal congestion.
  3. Activate gastrointestinal mucosa, invigorate the stomach and intestines, promote appetite, and accelerate digestion.
  4. It can regulate blood sugar and prevent the onset of diabetes.

Simply the most complete
CO2 extraction process you can find

CO2 Extraction Process

From raw material preparation, we offer you the most complete CO2 essential oil extraction process.
At the same time, more than 100 CO2 essential oil extraction methods from the laboratory are also provided for you.

MORE

how to extract essential oils

Detailed explanation of CO2 extraction process steps of plant essential oils。

Read More

how to extract cbd

About the co2 extraction machine cannabis.
You can read a lot of articles about cbd oil extraction from the Internet, but I can tell you for sure that they are not comprehensive at all, and even have wrong descriptions.

Let’s start reading

The extraction process of garlic oil mainly includes: steam distillation, solvent extraction, supercritical extraction and ultrasonic and microwave assisted extraction.

Steam distillation Process

The principle is to pass water vapor into an organic substance that is insoluble or hardly soluble in water but has a certain volatility (garlic oil has a certain volatility), so that the organic substance is distilled together with the water vapor at a temperature below 100 ℃ Come out, and then be further separated to obtain a relatively pure substance. The general process of this method is: peeling garlic → washing → mashing with water → enzymatic hydrolysis → steam distillation → oil-water separation → garlic oil.

Steam distillation has the characteristics of simple equipment, low cost and good stability, and is one of the most commonly used methods. However, due to the relatively high fermentation and distillation temperature, the activity of alliinase decreases, allicin is lost, and the oil yield is low. Moreover, the garlic oil obtained has a cooked taste, which is not fresh enough.

Solvent extraction Process

Garlic oil is slightly soluble in water and easily soluble in organic solvents such as ethanol, benzene, and ether. Using this property, garlic oil can be extracted with organic solvents. There is no obvious difference between the garlic oil obtained by this method and the garlic oil obtained by steam distillation.

The choice of organic solvent is the key. It is required that the solvent has good solubility for garlic oil, is easy to separate after the extraction, has a significant difference in boiling point, and does not contain other bad odors and solvent residues. The general process of the solvent method is: garlic peeling → washing → mashing → enzymatic hydrolysis → solvent extraction → distillation separation → solvent recovery → garlic oil.

Garlic Oil Co2 Extraction Process

Supercritical fluid extraction technology is a new type of extraction and separation technology. This technology utilizes the abnormal phase equilibrium behavior and transfer performance of the fluid in a certain area near the critical point with the solute to be separated, and the ability to dissolve the solute changes with pressure and temperature, and changes in a relatively wide range.

And a technology to achieve solute separation. Because CO2 is non-toxic and cheap, it is often used as an extractant. The general process of supercritical CO2 extraction of garlic oil is: garlic peeling → washing → mashing → filling the extraction column → sealing → supercritical extraction → depressurization → garlic oil.

Ultrasound assisted extraction Process

Ultrasonic extraction plays a prominent role in the extraction of active ingredients from natural products. Ultrasound can effectively break the cell boundary layer, increase the diffusion speed, increase the fragmentation speed, shorten the fragmentation time, and significantly improve the extraction efficiency. There is no chemical reaction in the leaching process, and the activity of the biologically active substance being leached is not reduced.

Microwave assisted extraction Process

Microwave is an electromagnetic wave with a frequency range of 300 MHz to 300 000 MHz. Under the action of microwave electric field, polar molecules change their positive and negative directions at a rate of 2.45 billion times per second, causing the molecules to collide and rub at high speed. High fever. In order to speed up the leaching speed of allicin and improve the leaching efficiency, many researchers use microwave-assisted extraction methods, and the results show that the effect is significant.

More read:Supercritical CO2 extraction of volatile components from garlic skin

Our garlic oil extraction equipment price is lower than our peers’, and our extraction equipment is high quality, we have our own manufacturing factory, all products are factory price, there is absolutely no middleman markup, we accept both small batch scale customer and large industrial batch scale wholesale customer, CO2 extraction machines and garlic oil extraction machines for sale online.
